(2) Dart Pro 1 Aluminum Cylinder Heads, Cylinder Head, Pro 1, Aluminum, Assembled, 62cc Chamber, 175cc Intake Runner, Ford, 289/ 302/ 351W, Each 13111182

Dart Cylinder Heads

<< Back

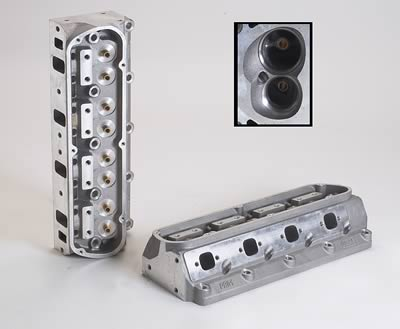

(2) Dart Pro 1 Aluminum Cylinder Heads, Cylinder Head, Pro 1, Aluminum, Assembled, 62cc Chamber, 175cc Intake Runner, Ford, 289/ 302/ 351W, Each 13111182

Cylinder Head, Pro 1, Aluminum, Assembled, 62cc Chamber, 175cc Intake Runner, Ford, 289/ 302/ 351W, Each

Performance heads at an affordable price.
Race-proven features and affordable pricing make these Dart Pro 1 355-T6 aluminum cylinder heads one of the biggest values in racing. Available as bare castings or fully assembled, the fully assembled heads include stainless steel valves, valve springs, retainers, locks, seals, studs, and guideplates. They come with your choice of angled or straight plug locations, and accept all early and late model accessory brackets.

Part Number: DRT-13111182
Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 62
CNC-Machined Combustion Chamber: No
Intake Runner Volume (cc): 175cc
Exhaust Runner Volume (cc): 75cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Intake Valves Included: Yes
Intake Valve Diameter (in): 1.940 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in): 0.620 in.
Outside Diameter of Outer Spring (in): 1.437 in.
Damper Spring Included: No
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16-20 in.
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 4-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold individually.

PART#: 13111182

Price: $835.00

Call 1.800.443.7748 during business hours to purchase this part.
