(2) Dart Iron Eagle Cylinder Heads for Small Ford, Cylinder Head, Iron Eagle, Bare, 62cc Chamber, 180cc Intake Runner, Ford, 260/ 289/ 302/ 351W, Each

Dart Cylinder Heads

<< Back

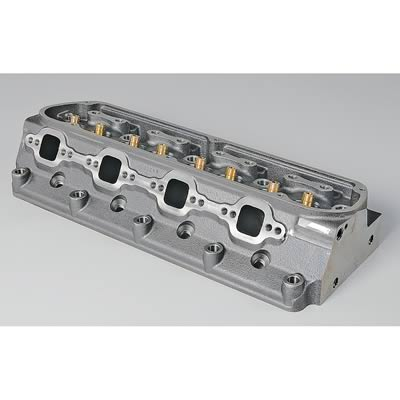

(2) Dart Iron Eagle Cylinder Heads for Small Ford, Cylinder Head, Iron Eagle, Bare, 62cc Chamber, 180cc Intake Runner, Ford, 260/ 289/ 302/ 351W, Each

Cylinder Head, Iron Eagle, Bare, 62cc Chamber, 180cc Intake Runner, Ford, 260/ 289/ 302/ 351W, Each

Dart Iron Eagle Ford cylinder heads, a head above the rest!
Replace your Ford Windsor small blocks stock heads with Dart Iron Eagle cylinder heads for a big performance upgrade at an unbeatable price! They're cast from premium, high-density iron with extra-thick decks for increased durability, plus they have machined valve cover rails and end pads for leak-free performance that fits like stock. Inside, you'll find precision-cast runners and combustion chambers, plus multi-angle intake and radiused, hardened exhaust seats for excellent airflow. The fully assembled heads come complete with screw-in rocker studs, stainless steel valves, valve springs (.550 in. max lift for 1.250 in. springs, .620 in. max lift for 1.467 in. springs), bronze valve guides, steel retainers, locks, and seals.

Part Number: DRT-13310080
Cylinder Head Style: Bare
Cylinder Head Material: Cast iron
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 62
CNC-Machined Combustion Chamber: No
Intake Runner Volume (cc): 180cc
Exhaust Runner Volume (cc): 73cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Location: Standard
Spark Plug Style: Angle
Intake Valves Included: No
Intake Valve Diameter (in): 1.940 in.
Exhaust Valves Included: No
Exhaust Valve Diameter (in): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold individually.

PART#: 13310080

Price: $440.00

Call 1.800.443.7748 during business hours to purchase this part.
